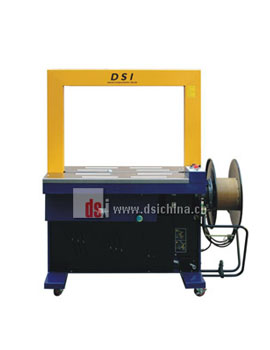

DBA-200 Automatic, Standard
Features & Specification
? This machine is the most general-purpose type,featuring a high strapping speed and a low failure rate
? The amount of strap storage can be freely adjusted based on the dimensions of the bow frame and the dimensions can also be selected freely according to the customer's needs
Applications
? Oiling is completely unnecessary,which simplifies maintenance
? Style of bundling:Single-and multiple-band parallel binding,both manual and automatic comtinuous bundling,spherical switch,foot switch
Specification
| Dimension | W1410 x D600 x H1540mm(arch W850 x H600) |
|---|---|
| Weight | Net.215kgs(shippping w't;250kgs) |
| Strap | Polypropylene Width;9,10,12,16,19mm |
| Power | 0.85KVA 1ph,100V-240V,50/60Hz 3ph,380V,50/60Hz |
| Speed | 2.3sec/min.a cycle (arch W850 x H600) |
| Arch | Width:550~2850mm Height:250~1800mm |
| Tension | 5~80kg |
| Table Height | 3″ 820mm/ 740mm 3″ 685mm/4″ 725mm/615mm |
